Advanced Million Color LED Mini Motorcycle Lighting Kit

Order within: to ship
Free Lifetime Technical Support One Year Limited Warranty

Product Description

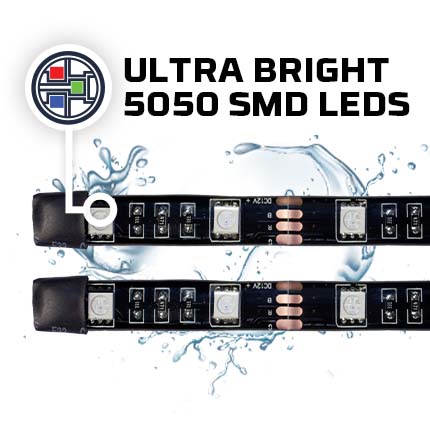

LEDGlow’s Advanced Million Color Mini Motorcycle Lighting Kit will illuminate your bike’s gas tank, frame rail or triple trees with a spotless, multi-color glow by utilizing ultra-bright, SMD technology housed in flexible 4 inch strips! What is SMD technology? An SMD chip consists of 3 concentrated RGB LEDs that work in unison to create the 15 solid color modes featured with the Advanced Million Color control box. The SMD LEDs featured with this motorcycle underglow light kit are so small and bright that when you look directly at them, you cannot notice the red, green and blue LEDs that are used to create each solid color. This Advanced Million Color Mini Motorcycle Underglow Kit is offered in a 6pc Kit that features 24 SMDs (72 LEDs) and can be expanded all the way up to a 20pc Kit that features 80 SMDs (240 LEDs) for maximum brightness. Each 4" motorcycle light strip features 4 SMD LEDs, 3' of wire and a thickness of 1/8" to be mounted virtually anywhere on the bike away from direct heat sources and moving parts. These Advanced Million Color Light Strips can also be cut to fit into smaller and tighter locations of your bike such as any fairing opening or front/rear fenders.

The included waterproof control box is what drives this Advanced Million Color Mini Motorcycle Lighting Kit by featuring 15 vibrant solid color modes that include blue, green, red, white, pink, orange, teal and much more, along with 2 color cycle modes, 3 flashing modes and 1 fading mode. Each featured solid color or lighting pattern can be easily selected by utilizing the included four button wireless remote. The waterproof control box features a new, unique round design that measures at 1-5/8" in diameter and 5/8" in height, making it extremely easy to hide under the seat. Attached the control box is 18" of wire with a male modular connection that connects to the power harness and 12" of power and ground wires that connect to the battery. The power wire features a waterproof 2 amp inline blade fuse that protects the power circuit of the control box.

The automatic brake light feature illuminates all installed LEDs in red, mirroring the motorcycle’s brake lights and safely signaling other motorists on the road. Pull the brake handle and the brake lights will instantly illuminate red LEDs throughout the lighting kit. This feature can be used whether the control box is powered on or off. To activate the function, install the blue wire from the control box into the motorcycle’s brake signal wires.

Upgrading the motorcycle kit to include the Advanced Million Color Control Box with Smartphone Control offers total LED control directly from the palm of your hand through the LEDGlow Motorcycle Control App. Using your iOS (7.0 & up) or Android (4.4 KitKat & up) smartphone device allows you to select virtually any solid color via the integrated color wheel and choose from 15 unique patterns from the dropdown menu. The dual zone control feature allows even further color and lighting pattern customization by independently illuminating 2 sections of the motorcycle simultaneously. The automatic brake light feature illuminates all installed LEDs in red mirroring the motorcycle’s brake lights while safely signaling other motorists on the road. The hazard lights feature automatically overrides any color or pattern and flashes amber LEDs alerting other motorists on the road. The app features a first-of-its-kind low voltage shut off setting that helps conserve the life of the motorcycle’s battery. If the battery voltage reads less than 10 volts for more than 60 seconds, the kit will automatically shut off allowing you to safely get to your destination. Click here to learn more about the smartphone control box and its amazing features.

LEDGlow offers Adhesion Promoter, which is a liquid primer that creates an extra layer of adhesion between the mini LED strip and the mounting surface of your motorcycle. Using this adhesion promoter is not required to complete the installation, but allows for a much stronger bond that will last over time than simply installed the light strip with the included double-sided tape attached to the strip.

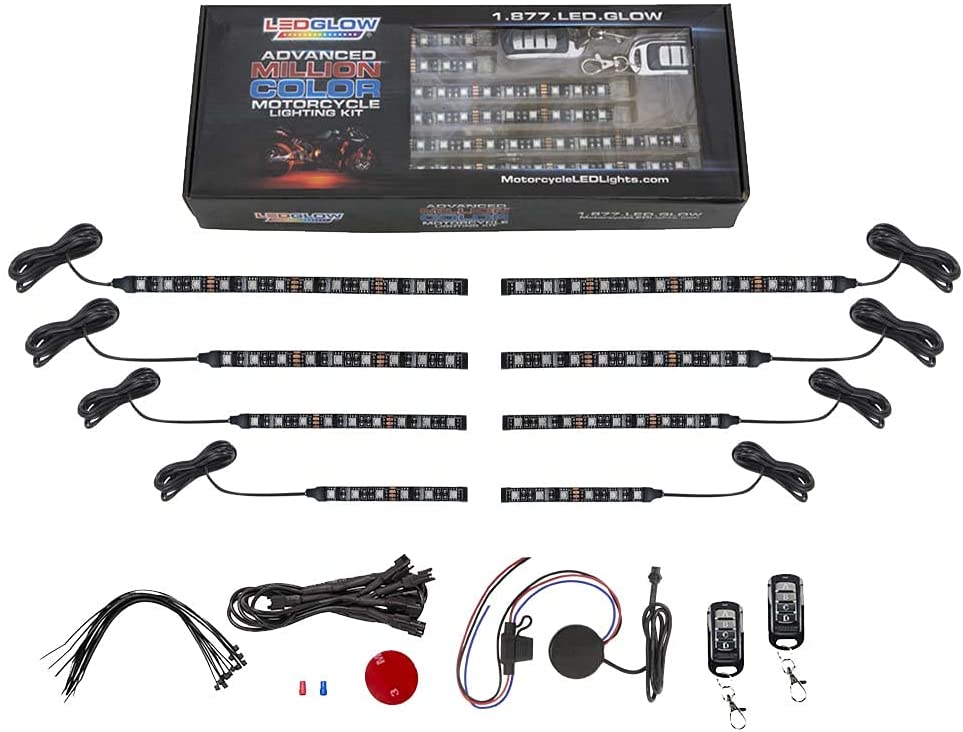

Advanced Million Color Mini Motorcycle Lighting Kit Includes:

  • Surface Mounted RGB LEDs
  • 4" Flexible Light Strips
  • Waterproof Advanced Million Color Control Box

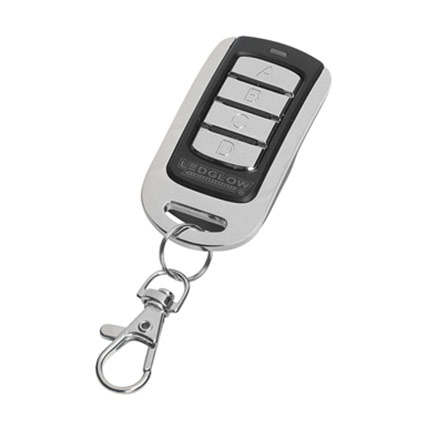

  • 4 Button Wireless Remote
  • 15 Solid Color Modes Include Blue, Red, Green, Pink, Purple, Teal, Orange, Aqua,
    Yellow, Light Pink, Light Green, Light Purple, Cool Blue, Cool White & Warm White
  • 2 Color Cycle Modes, 3 Flashing Modes, and 1 Fading Mode
  • Strips are 1/8" in Depth
  • Expandable up to 20 Light Strips
  • 3' of Wire per Light Strip
  • Installation Hardware and Instructions
  • Free Lifetime Technical Support
  • One Year Limited Warranty

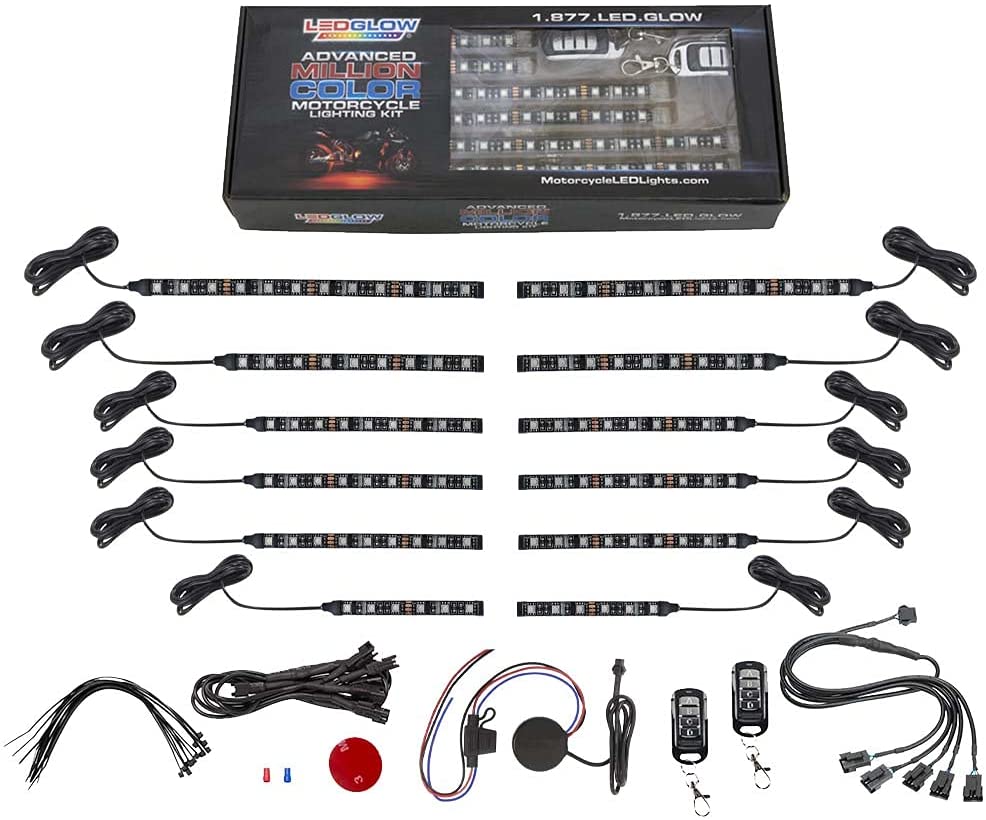

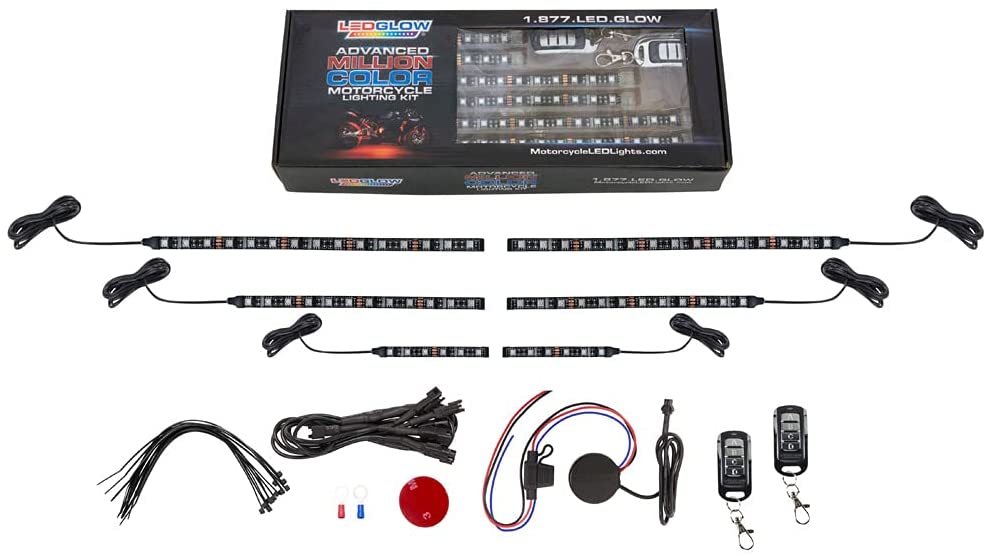

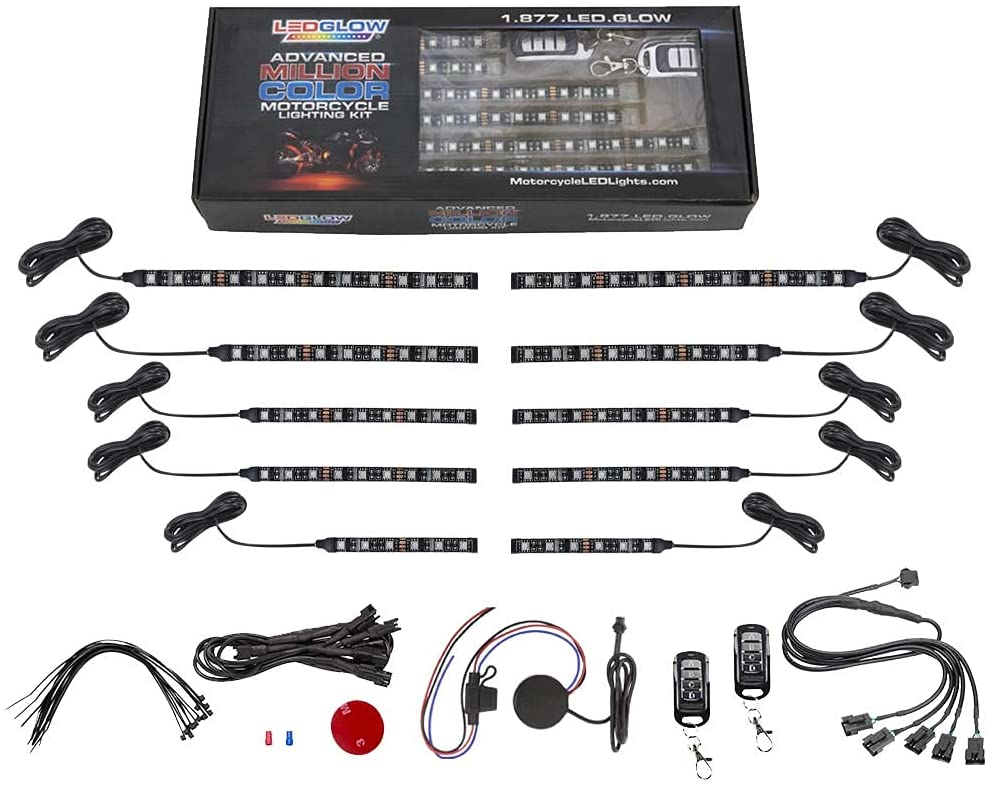

Kit Size 6pc Kit 8pc Kit 10pc Kit 12pc Kit
SMD Total 24 SMDs 32 SMDs 40 SMDs 48 SMDs
LED Total 72 LEDs 96 LEDs 120 LEDs 144 LEDs

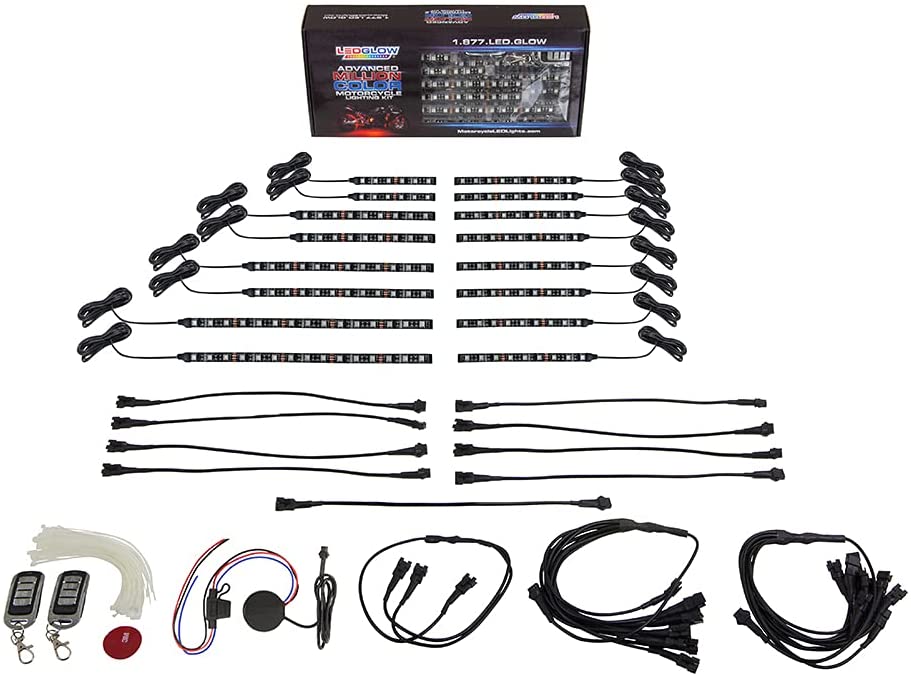

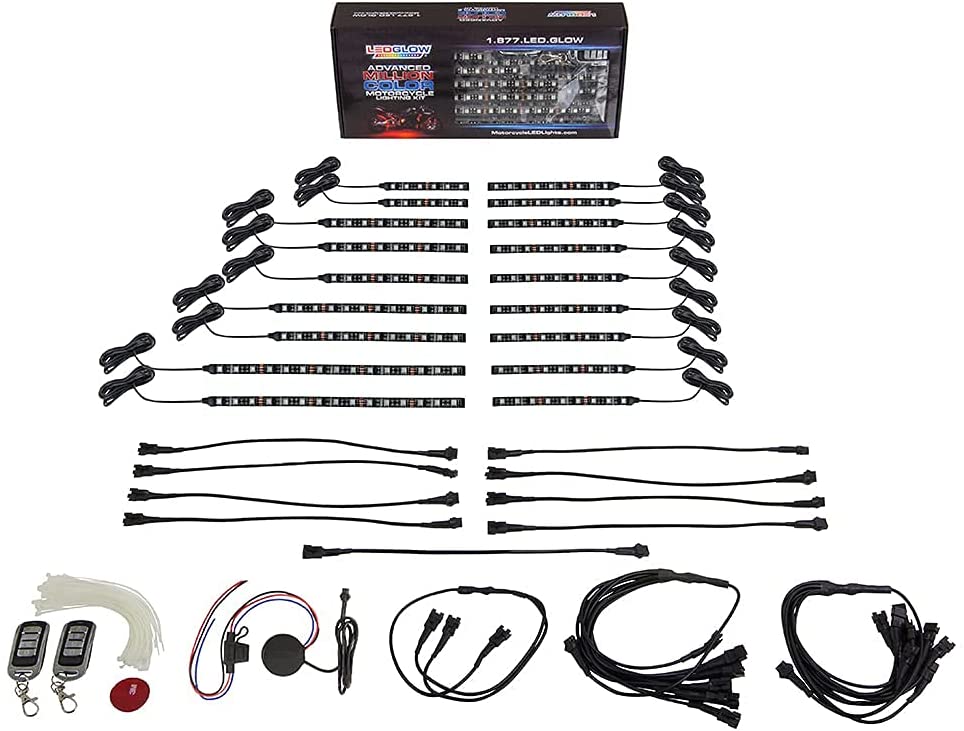

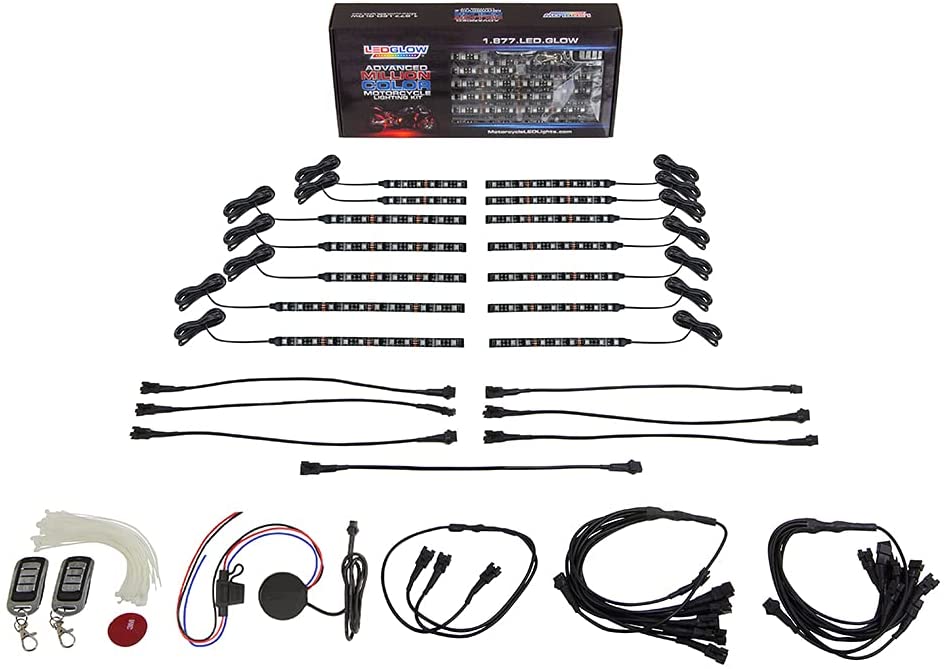

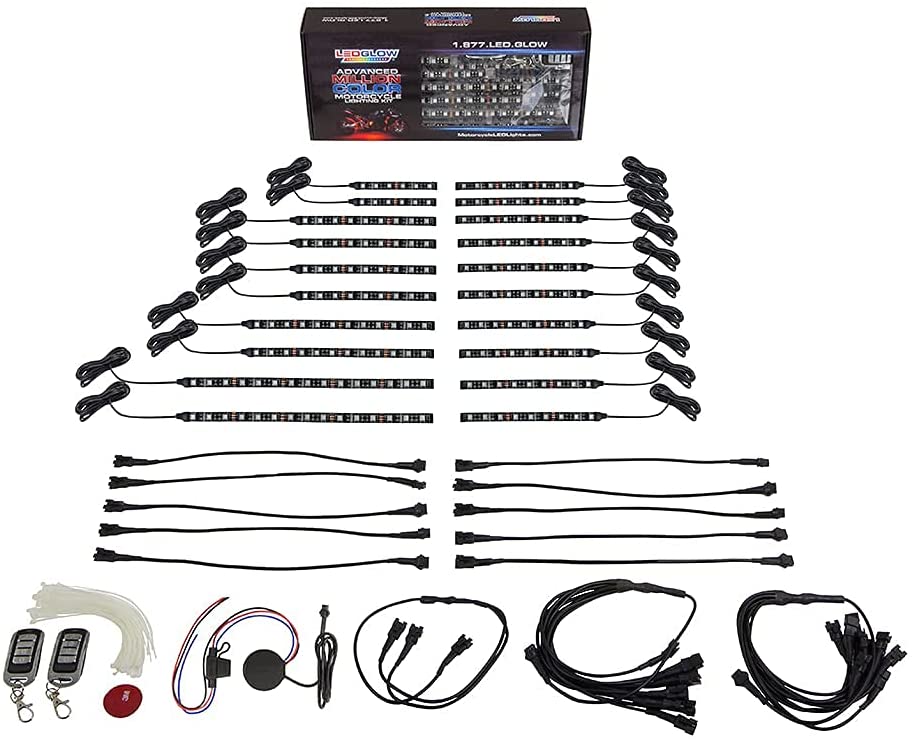

Kit Size 14pc Kit 16pc Kit 18pc Kit 20pc Kit
SMD Total 56 SMDs 64 SMDs 72 SMDs 80 SMDs
LED Total 168 LEDs 192 LEDs 216 LEDs 240 LEDs
