Advanced Million Color LED Motorcycle Lighting Kit

$79.99
SKU:
LU-MC-ADV-M
UPC:
842383105879
In Stock & Ready to Ship Most Orders Placed by 3PM EST Ship Same Day (Except Weekends & Holidays)
Free Lifetime Technical Support One Year Limited Warranty
Overview
Advanced Million Color SMD LED Motorcycle Lighting Kit Advanced Million Color SMD LED Motorcycle Lighting Kit

LEDGlow’s Advanced Million Color SMD LED Motorcycle Lighting Kit utilizes ultra-bright surface mounted 5050 SMD LED technology, producing extremely bright colors for a custom style plus added visibility when you’re riding at night. With 5050 SMD LEDs you’re getting 3 colors in 1 LED chip. The result is a color spill which is much more vibrant and much brighter. 6pc to 30pc accent lighting kits are available featuring ultra-thin LED strips that you can set up in a custom configuration on your bike. You’ll be able to create unique lighting patterns that showcase your motorcycle while also adding a new dimension to your riding experience.

Waterproof Control Box

Waterproof Control Box

  • Durable in Tough Conditions
  • Create Custom Lighting Patterns
  • 15 Solid Color Modes
  • Color Cycle, Flashing, Fading Modes
  • Blue Wire for Brake Light Feature
Wireless Remotes

Wireless Remotes

  • Includes (2) Remotes
  • Activate All Kit Functions
  • 4 Buttons Control All Features
  • Pre-Programmed
  • Works Within 30-Foot Range
Lighting Strips

Strip Profile

  • 4”, 8”, 10” Flex Strips
  • Strips are 1/8" in Depth
  • Fully Sealed & Waterproof
  • Strips Can Be Cut to Size
  • Mount Using Adhesive Tape
Advanced Million Color SMD LED Motorcycle Lighting Kit Advanced Million Color SMD LED Motorcycle Lighting Kit

The Automatic Brake Lights feature illuminates all installed LEDs in red, mirroring the motorcycle’s brake lights and safely signaling other motorists on the road. Pull the brake handle and the brake light will instantly illuminate red LEDs throughout the lighting kit. This feature can be used whether the control box is powered on or off. To activate the function, install the blue wire from the control box into the motorcycle’s brake signal wires.

Features

With the ultra-thin and flexible LED lighting strips, you can create a completely custom layout for your bike by installing them to the turn signals, fenders, frame rails, beneath your seat and more. These strips can also be cut to size when needed to make the install process even easier. With this lighting kit’s expandability option, you can install up to 30 ultra-bright LED strips for the ultimate lighting experience. The control box has a unique, round design that measures 1-5/8” in diameter and 5/8” in height, making it extremely easy to hide. Included with the many lighting features is Advanced Million Color Cycle Mode, which you can use to scroll through a nearly unlimited number of variations in the shading of each solid color option.

Wiring Harnesses

LEDGlow Advanced Million Color SMD LED Motorcycle LED Light Kits include all wiring required for installation. Attached to the control box is 18” of wire with a male modular connector that connects to the power harness, and 12” of power and ground wires that connect to the battery. The power harness is 2’ long and features a waterproof 2 amp inline blade fuse that protects the power circuit of the control box. Each LED lighting strip is also equipped with 3’ of power wire which easily connects to the power harness by once again utilizing modular connectors for seamless connections.

LEDGlow Guarantee

LEDGlow includes installation instructions, free lifetime technical support and a one year limited warranty with every purchase of our moto LED lights.

Adhesion Promoter
Adhesion Promoter

Adhesion Promoter provides additional strength by creating a stronger bond between the light strip and mounting location that will last over time, rather than just using the provided double-sided tape. This promoter is available from 3 packets all the way up to 27 packets and not required for installation.

  • Provides Additional Adhesion Strength Between the LED Light & Mounting Location
  • Available from 3, 9, 18, or 27 Promoter Packets
1' & 2' Wiring Extensions
1' & 2' Wiring Extensions

These wiring extensions add 1’ or 2’ of wiring to the 3’ of wire attached to the motorcycle strip to reach further areas of the bike. Extensions are available in pairs from 2pc all the way up to 8pc to account for strips mounted on both sides of the motorcycle.

  • Extends 3’ Motorcycle Light Strip Wiring An Additional 1’ or 2’ in Length
  • Available in 2pc, 4pc, 6pc or 8pc Options
3' & 5' Wiring Extensions
3' & 5' Wiring Extensions

These wiring extensions are ideal for larger motorcycles such as baggers, trikes and Slingshots, that add 3’ or 5’ of wiring to the 3’ of wire attached to the motorcycle strip to reach areas that it may not reach without. Extensions are available in pairs from 2pc all the way up to 8pc to account for strips mounted on both sides of the motorcycle.

  • Extends 3’ Motorcycle Light Strip Wiring An Additional 3’ or 5’ in Length
  • Perfect for Larger Motorcycles such as Baggers, Trikes or Slingshots
  • Available in 2pc, 4pc, 6pc or 8pc Options

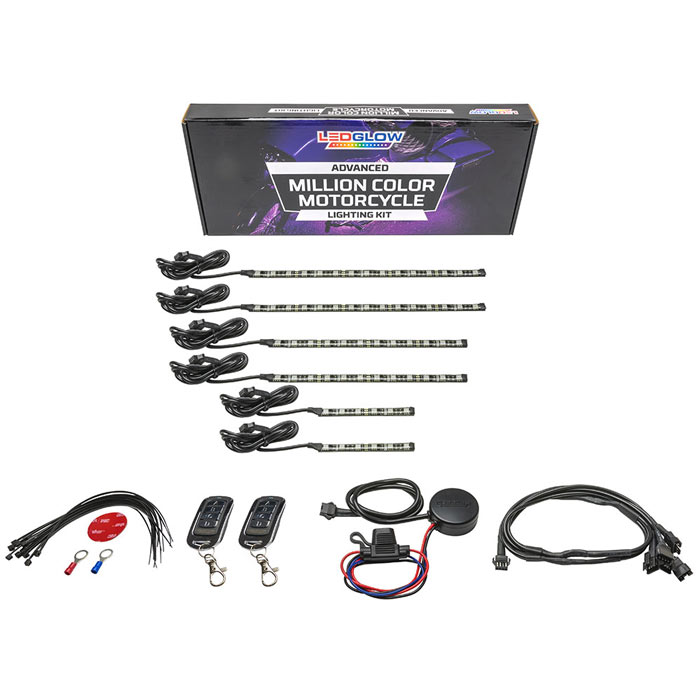

6pc Lighting Kit
6pc Advanced Million Color SMD LED Motorcycle Lighting Kit

What's Included:

  • (2) 4”, (2) 8” & (2) 10” Flexible LED Lighting Strips
  • 66 SMD LEDs
  • Waterproof Control Box with a 2-Amp Inline Blade Fuse
  • 2 Wireless Remotes
  • 6pc Power Harness
  • 2 Eyelet Connectors
  • Double-Sided Tape
  • Zip-Ties
  • Installation Instructions

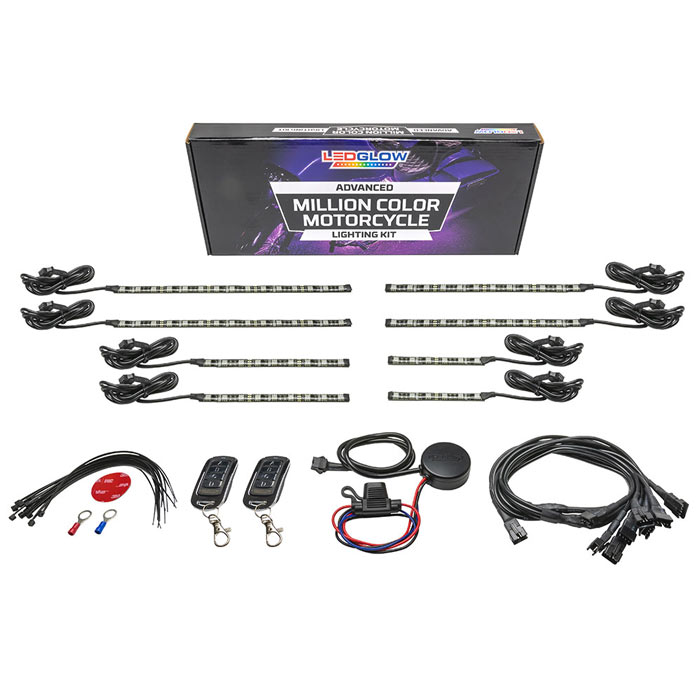

8pc Lighting Kit
8pc Advanced Million Color SMD LED Motorcycle Lighting Kit

What's Included:

  • (2) 4”, (2) 6", (2) 8” & (2) 10” Flexible LED Lighting Strips
  • 84 SMD LEDs
  • Waterproof Control Box with a 2-Amp Inline Blade Fuse
  • 2 Wireless Remotes
  • 8pc Power Harness
  • 2 Eyelet Connectors
  • Double-Sided Tape
  • Zip-Ties
  • Installation Instructions

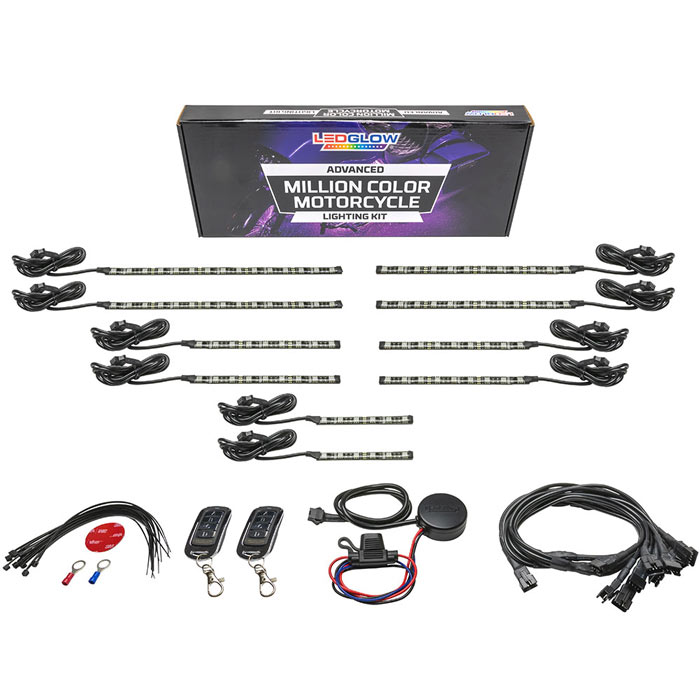

10pc Lighting Kit
10pc Advanced Million Color SMD LED Motorcycle Lighting Kit

What's Included:

  • (2) 4”, (4) 6", (2) 8” & (2) 10” Flexible LED Lighting Strips
  • 102 SMD LEDs
  • Waterproof Control Box with a 2-Amp Inline Blade Fuse
  • 2 Wireless Remotes
  • 10pc Power Harness
  • 2 Eyelet Connectors
  • Double-Sided Tape
  • Zip-Ties
  • Installation Instructions

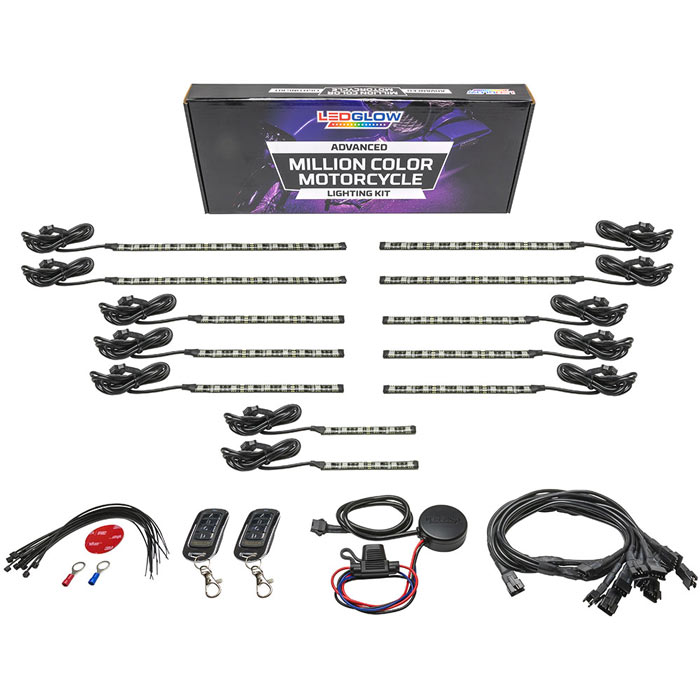

12pc Lighting Kit
12pc Advanced Million Color SMD LED Motorcycle Lighting Kit

What's Included:

  • (2) 4”, (6) 6", (2) 8” & (2) 10” Flexible LED Lighting Strips
  • 120 SMD LEDs
  • Waterproof Control Box with a 2-Amp Inline Blade Fuse
  • 2 Wireless Remotes
  • 12pc Power Harness
  • 2 Eyelet Connectors
  • Double-Sided Tape
  • Zip-Ties
  • Installation Instructions

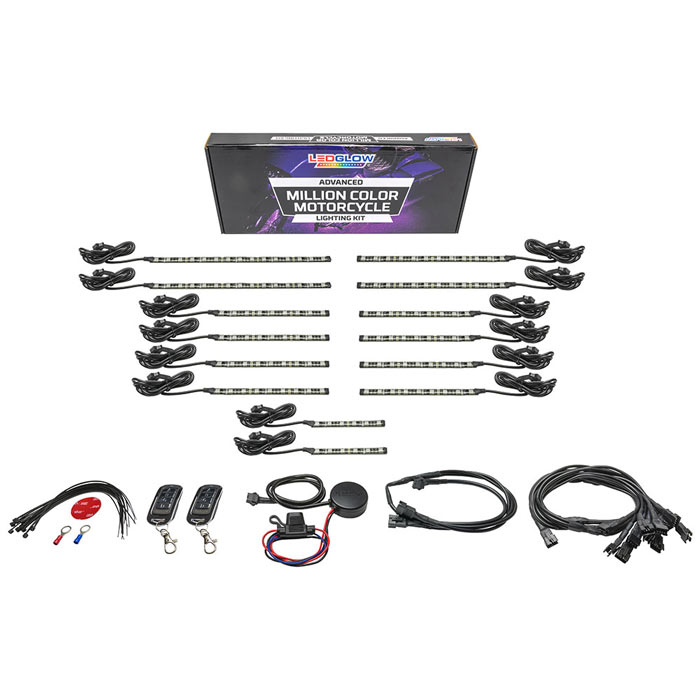

14pc Lighting Kit
14pc Advanced Million Color SMD LED Motorcycle Lighting Kit

What's Included:

  • (2) 4”, (8) 6", (2) 8” & (2) 10” Flexible LED Lighting Strips
  • 138 SMD LEDs
  • Waterproof Control Box with a 2-Amp Inline Blade Fuse
  • 2 Wireless Remotes
  • 12pc Power Harness
  • 2pc Add-On Harness
  • 2 Eyelet Connectors
  • Double-Sided Tape
  • Zip-Ties
  • Installation Instructions

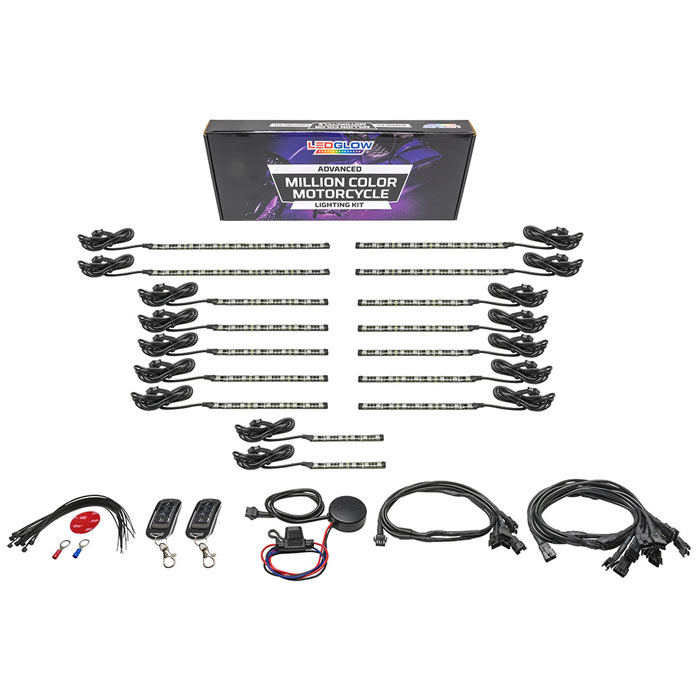

16pc Lighting Kit
16pc Advanced Million Color SMD LED Motorcycle Lighting Kit

What's Included:

  • (2) 4”, (10) 6", (2) 8” & (2) 10” Flexible LED Lighting Strips
  • 156 SMD LEDs
  • Waterproof Control Box with a 2-Amp Inline Blade Fuse
  • 2 Wireless Remotes
  • 12pc Power Harness
  • 4pc Add-On Harness
  • 2 Eyelet Connectors
  • Double-Sided Tape
  • Zip-Ties
  • Installation Instructions

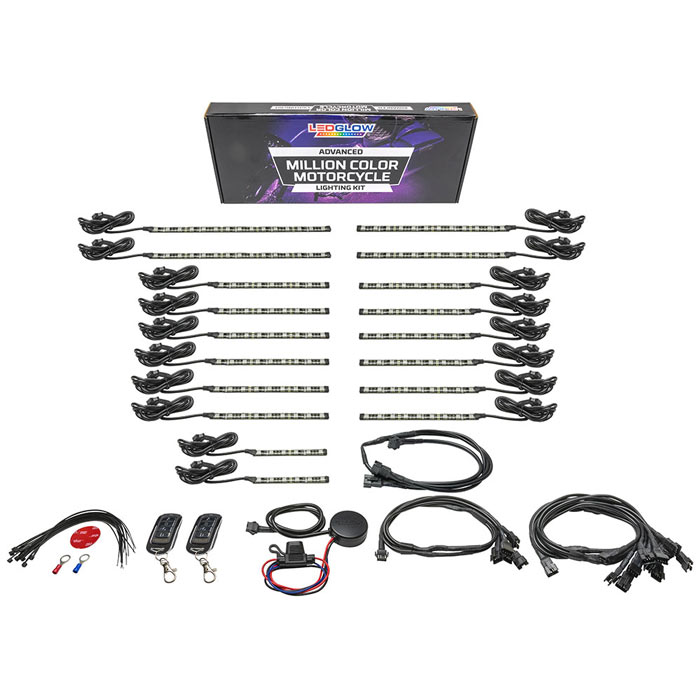

18pc Lighting Kit
18pc Advanced Million Color SMD LED Motorcycle Lighting Kit

What's Included:

  • (2) 4”, (12) 6", (2) 8” & (2) 10” Flexible LED Lighting Strips
  • 174 SMD LEDs
  • Waterproof Control Box with a 2-Amp Inline Blade Fuse
  • 2 Wireless Remotes
  • 12pc Power Harness
  • 4pc Add-On Harness
  • 2pc Add-On Harness
  • 2 Eyelet Connectors
  • Double-Sided Tape
  • Zip-Ties
  • Installation Instructions

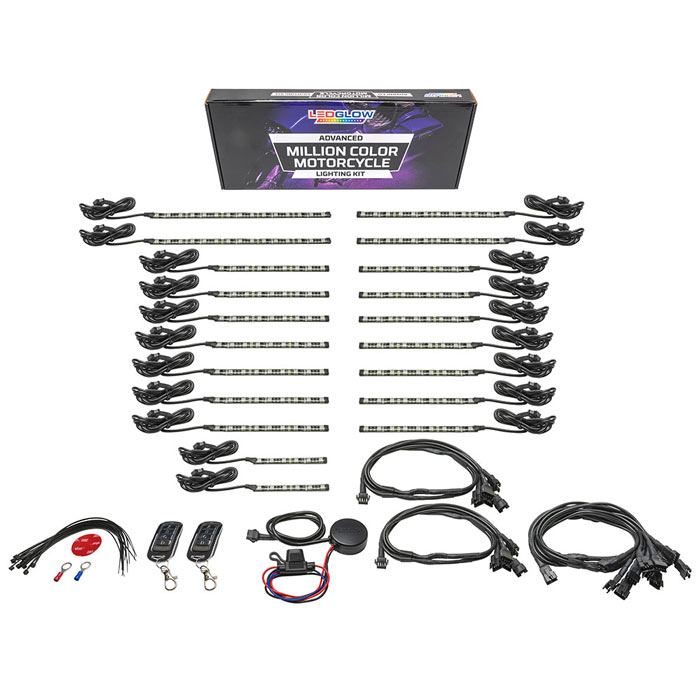

20pc Lighting Kit
20pc Advanced Million Color SMD LED Motorcycle Lighting Kit

What's Included:

  • (2) 4”, (14) 6", (2) 8” & (2) 10” Flexible LED Lighting Strips
  • 192 SMD LEDs
  • Waterproof Control Box with a 2-Amp Inline Blade Fuse
  • 2 Wireless Remotes
  • 12pc Power Harness
  • (2) 4pc Add-On Harnesses
  • 2 Eyelet Connectors
  • Double-Sided Tape
  • Zip-Ties
  • Installation Instructions

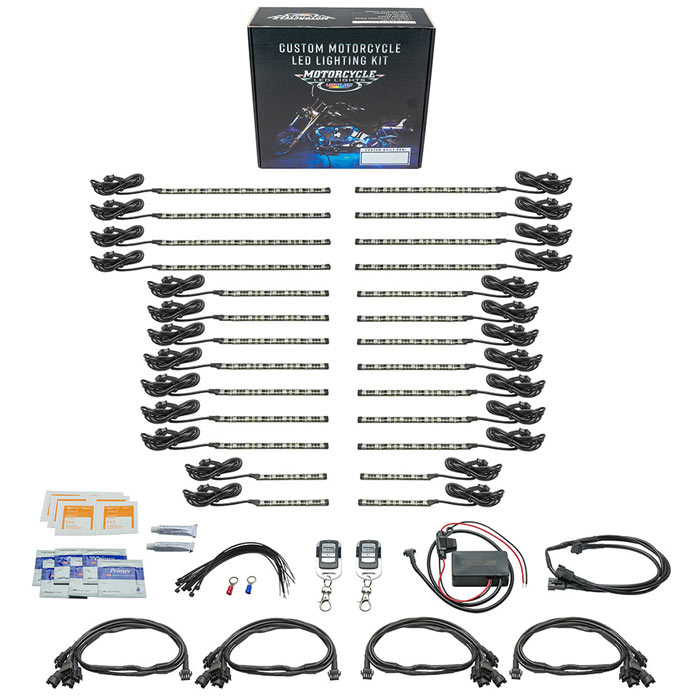

26pc Lighting Kit
26pc Advanced Million Color SMD LED Motorcycle Lighting Kit

What's Included:

  • (4) 4", (14) 6", (4) 8" & (4) 10" Flexible LED Lighting Strips
  • 258 SMD LEDs
  • 200 Watt Control Box with a 2-Amp Inline Blade Fuse
  • 2 Wireless Remotes
  • 6pc Power Harness
  • (3) 6pc Add-On Harnesses
  • 2pc Add-On Harness
  • (18) Packets of Adhesion Promoter
  • 2 Eyelet Connectors
  • Double-Sided Tape
  • Zip-Ties
  • Installation Instructions

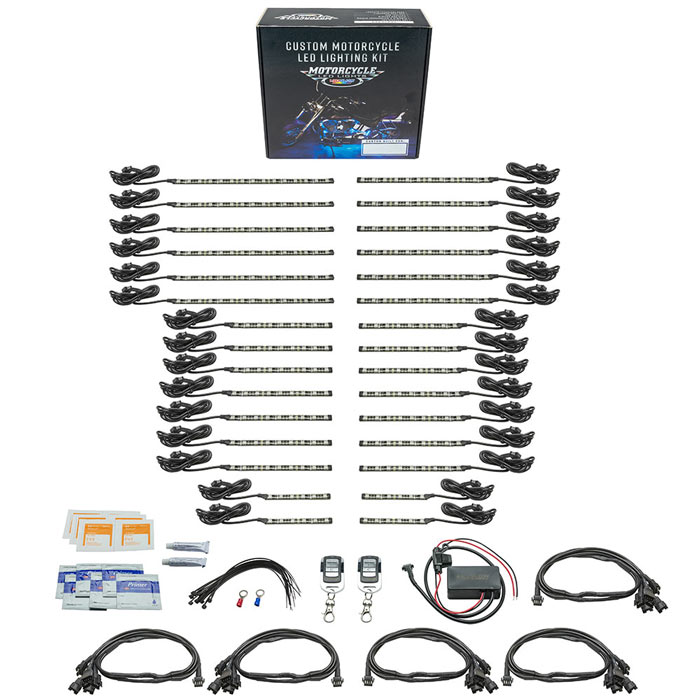

30pc Lighting Kit
30pc Advanced Million Color SMD LED Motorcycle Lighting Kit

What's Included:

  • (4) 4", (14) 6", (6) 8" & (6) 10" Flexible LED Lighting Strips
  • 312 SMD LEDs
  • 200 Watt Control Box with a 2-Amp Inline Blade Fuse
  • 2 Wireless Remotes
  • 6pc Power Harness
  • (4) 6pc Add-On Harnesses
  • (18) Packets of Adhesion Promoter
  • 2 Eyelet Connectors
  • Double-Sided Tape
  • Zip-Ties
  • Installation Instructions
Kit Sizes
Showing:
Add-On Options
Instructions

The Advanced Million Color LED Motorcycle Lighting Kit comes with an installation guide which is available online and included with your order. You can also visit our library of installation videos which include complete step-by-step tutorials and useful tips on how to install a wide range of LEDGlow products.

Download and Print the PDF Download Instructions View Our Help Center Help Center
